## Open Petri Nets (Part 1)

Jade Master and I have just finished a paper on open Petri nets:

• John Baez and Jade Master, Open Petri nets, Mathematical Structures in Computer Science, 30 (2020), 314–341.

Abstract. The reachability semantics for Petri nets can be studied using open Petri nets. For us an ‘open’ Petri net is one with certain places designated as inputs and outputs via a cospan of sets. We can compose open Petri nets by gluing the outputs of one to the inputs of another. Open Petri nets can be treated as morphisms of a category, which becomes symmetric monoidal under disjoint union. However, since the composite of open Petri nets is defined only up to isomorphism, it is better to treat them as morphisms of a symmetric monoidal double category $\mathbb{O}\mathbf{pen}(\mathrm{Petri}).$ Various choices of semantics for open Petri nets can be described using symmetric monoidal double functors out of $\mathbb{O}\mathbf{pen}(\mathrm{Petri}).$ Here we describe the reachability semantics, which assigns to each open Petri net the relation saying which markings of the outputs can be obtained from a given marking of the inputs via a sequence of transitions. We show this semantics gives a symmetric monoidal lax double functor from $\mathbb{O}\mathbf{pen}(\mathrm{Petri})$ to the double category of relations. A key step in the proof is to treat Petri nets as presentations of symmetric monoidal categories; for this we use the work of Meseguer, Montanari, Sassone and others.

I’m excited about this, especially because our friends at Statebox are planning to use open Petri nets in their software. They’ve recently come out with a paper too:

• Fabrizio Romano Genovese and Jelle Herold, Executions in (semi-)integer Petri nets are compact closed categories.

Petri nets are widely used to model open systems in subjects ranging from computer science to chemistry. There are various kinds of Petri net, and various ways to make them ‘open’, and my paper with Jade only handles the simplest. But our techniques are flexible, so they can be generalized.

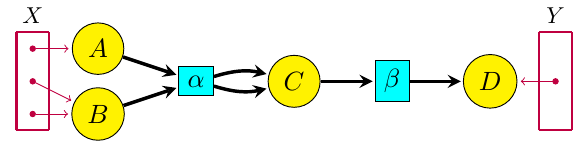

What’s an open Petri net? For us, it’s a thing like this:

The yellow circles are called ‘places’ (or in chemistry, ‘species’). The aqua rectangles are called ‘transitions’ (or in chemistry, ‘reactions’). There can in general be lots of places and lots of transitions. The bold arrows from places to transitions and from transitions to places complete the structure of a Petri net. There are also arbitrary functions from sets $X$ and $Y$ into the set of places. This makes our Petri net into an ‘open’ Petri net.

We can think of open Petri nets as morphisms between finite sets. There’s a way to compose them! Suppose we have an open Petri net $P$ from $X$ to $Y,$ where now I’ve given names to the points in these sets: We write this as $P \colon X \nrightarrow Y$ for short, where the funky arrow reminds us this isn’t a function between sets. Given another open Petri net $Q \colon Y \nrightarrow Z,$ for example this: the first step in composing $P$ and $Q$ is to put the pictures together: At this point, if we ignore the sets $X,Y,Z,$ we have a new Petri net whose set of places is the disjoint union of those for $P$ and $Q.$

The second step is to identify a place of $P$ with a place of $Q$ whenever both are images of the same point in $Y$. We can then stop drawing everything involving $Y,$ and get an open Petri net $QP \colon X \nrightarrow Z,$ which looks like this: Formalizing this simple construction leads us into a bit of higher category theory. The process of taking the disjoint union of two sets of places and then quotienting by an equivalence relation is a pushout. Pushouts are defined only up to canonical isomorphism: for example, the place labeled $C$ in the last diagram above could equally well have been labeled $D$ or $E.$ This is why to get a category, with composition strictly associative, we need to use isomorphism classes of open Petri nets as morphisms. But there are advantages to avoiding this and working with open Petri nets themselves. Basically, it’s better to work with things than mere isomorphism classes of things! If we do this, we obtain not a category but a bicategory with open Petri nets as morphisms.

However, this bicategory is equipped with more structure. Besides composing open Petri nets, we can also ‘tensor’ them via disjoint union: this describes Petri nets being run in parallel rather than in series. The result is a symmetric monoidal bicategory. Unfortunately, the axioms for a symmetric monoidal bicategory are cumbersome to check directly. Double categories turn out to be more convenient.

Double categories were introduced in the 1960s by Charles Ehresmann. More recently they have found their way into applied mathematics. They been used to study various things, including open dynamical systems:

• Eugene Lerman and David Spivak, An algebra of open continuous time dynamical systems and networks.

open electrical circuits and chemical reaction networks:

• Kenny Courser, A bicategory of decorated cospans, Theory and Applications of Categories 32 (2017), 995–1027.

open discrete-time Markov chains:

• Florence Clerc, Harrison Humphrey and P. Panangaden, Bicategories of Markov processes, in Models, Algorithms, Logics and Tools, Lecture Notes in Computer Science 10460, Springer, Berlin, 2017, pp. 112–124.

and coarse-graining for open continuous-time Markov chains:

• John Baez and Kenny Courser, Coarse-graining open Markov processes. (Blog article here.)

As noted by Shulman, the easiest way to get a symmetric monoidal bicategory is often to first construct a symmetric monoidal double category:

• Mike Shulman, Constructing symmetric monoidal bicategories.

The theory of ‘structured cospans’ gives a systematic way to build symmetric monoidal double categories—Kenny Courser and I are writing a paper on this—and Jade and I use this to construct the symmetric monoidal double category of open Petri nets.

A 2-morphism in a double category can be drawn as a square like this: We call $X_1,X_2,Y_1$ and $Y_2$ ‘objects’, $f$ and $g$ ‘vertical 1-morphisms’, $M$ and $N$ ‘horizontal 1-cells’, and $\alpha$ a ‘2-morphism’. We can compose vertical 1-morphisms to get new vertical 1-morphisms and compose horizontal 1-cells to get new horizontal 1-cells. We can compose the 2-morphisms in two ways: horizontally and vertically. (This is just a quick sketch of the ideas, not the full definition.)

In our paper, Jade and I start by constructing a symmetric monoidal double category $\mathbb{O}\mathbf{pen}(\textrm{Petri})$ with:

• sets $X, Y, Z, \dots$ as objects,

• functions $f \colon X \to Y$ as vertical 1-morphisms,

• open Petri nets $P \colon X \nrightarrow Y$ as horizontal 1-cells,

• morphisms between open Petri nets as 2-morphisms.

(Since composition of horizontal 1-cells is associative only up to an invertible 2-morphism, this is technically a pseudo double category.)

What are the morphisms between open Petri nets like? A simple example may be help give a feel for this. There is a morphism from this open Petri net: to this one: mapping both primed and unprimed symbols to unprimed ones. This describes a process of ‘simplifying’ an open Petri net. There are also morphisms that include simple open Petri nets in more complicated ones, etc.

This is just the start. Our real goal is to study the semantics of open Petri nets: that is, how they actually describe processes! And for that, we need to think about the free symmetric monoidal category on a Petri net. You can read more about those things in Part 2 and Part 3 of this series.

Part 1: the double category of open Petri nets.

Part 2: the reachability semantics for open Petri nets.

Part 3: the free symmetric monoidal category on a Petri net.
