Tipping Points in Climate Systems

If you’ve just recently gotten a PhD, you can get paid to spend a week this summer studying tipping points in climate systems!

They’re having a program on this at ICERM: the Institute for Computational and Experimental Research in Mathematics, in Providence, Rhode Island. It’s happening from July 15th to 19th, 2013. But you have to apply soon, by the 15th of March!

For details, see below. But first, a word about tipping points… in case you haven’t thought about them much.

Tipping Points

A tipping point occurs when adjusting some parameter of a system causes it to transition abruptly to a new state. The term refers to a well-known example: as you push more and more on a glass of water, it gradually leans over further until you reach the point where it suddenly falls over. Another familiar example is pushing on a light switch until it ‘flips’ and the light turns on.

In the Earth’s climate, a number of tipping points could cause abrupt climate change:



(Click to enlarge.) They include:

• Loss of Arctic sea ice.
• Melting of the Greenland ice sheet.
• Melting of the West Antarctic ice sheet.
• Permafrost and tundra loss, leading to the release of methane.
• Boreal forest dieback.
• Amazon rainforest dieback
• West African monsoon shift.
• Indian monsoon chaotic multistability.
• Change in El Niño amplitude or frequency.
• Change in formation of Atlantic deep water.
• Change in the formation of Antarctic bottom water.

You can read about them here:

• T. M. Lenton, H. Held, E. Kriegler, J. W. Hall, W. Lucht, S. Rahmstorf, and H. J. Schellnhuber, Tipping elements in the Earth’s climate system, Proceedings of the National Academy of Sciences 105 (2008), 1786–1793.

Mathematicians are getting interested in how to predict when we’ll hit a tipping point:

• Peter Ashwin, Sebastian Wieczorek and Renato Vitolo, Tipping points in open systems: bifurcation, noise-induced and rate-dependent examples in the climate system, Phil. Trans. Roy. Soc. A 370 (2012), 1166–1184.

Abstract: Tipping points associated with bifurcations (B-tipping) or induced by noise (N-tipping) are recognized mechanisms that may potentially lead to sudden climate change. We focus here a novel class of tipping points, where a sufficiently rapid change to an input or parameter of a system may cause the system to “tip” or move away from a branch of attractors. Such rate-dependent tipping, or R-tipping, need not be associated with either bifurcations or noise. We present an example of all three types of tipping in a simple global energy balance model of the climate system, illustrating the possibility of dangerous rates of change even in the absence of noise and of bifurcations in the underlying quasi-static system.

We can test out these theories using actual data:

• J. Thompson and J. Sieber, Predicting climate tipping points as a noisy bifurcation: a review, International Journal of Chaos and Bifurcation 21 (2011), 399–423.

Abstract: There is currently much interest in examining climatic tipping points, to see if it is feasible to predict them in advance. Using techniques from bifurcation theory, recent work looks for a slowing down of the intrinsic transient responses, which is predicted to occur before an instability is encountered. This is done, for example, by determining the short-term auto-correlation coefficient ARC in a sliding window of the time series: this stability coefficient should increase to unity at tipping. Such studies have been made both on climatic computer models and on real paleoclimate data preceding ancient tipping events. The latter employ re-constituted time-series provided by ice cores, sediments, etc, and seek to establish whether the actual tipping could have been accurately predicted in advance. One such example is the end of the Younger Dryas event, about 11,500 years ago, when the Arctic warmed by 7 C in 50 years. A second gives an excellent prediction for the end of ’greenhouse’ Earth about 34 million years ago when the climate tipped from a tropical state into an icehouse state, using data from tropical Pacific sediment cores. This prediction science is very young, but some encouraging results are already being obtained. Future analyses will clearly need to embrace both real data from improved monitoring instruments, and simulation data generated from increasingly sophisticated predictive models.

The next paper is interesting because it studies tipping points experimentally by manipulating a lake. Doing this lets us study another important question: when can you push a system back to its original state after it’s already tipped?

• S. R. Carpenter, J. J. Cole, M. L. Pace, R. Batt, W. A. Brock, T. Cline, J. Coloso, J. R. Hodgson, J. F. Kitchell, D. A. Seekell, L. Smith, and B. Weidel, Early warnings of regime shifts: a whole-ecosystem experiment, Nature 332 (2011), 1079–1082.

Abstract: Catastrophic ecological regime shifts may be announced in advance by statistical early-warning signals such as slowing return rates from perturbation and rising variance. The theoretical background for these indicators is rich but real-world tests are rare, especially for whole ecosystems. We tested the hypothesis that these statistics would be early-warning signals for an experimentally induced regime shift in an aquatic food web. We gradually added top predators to a lake over three years to destabilize its food web. An adjacent lake was monitored simultaneously as a reference ecosystem. Warning signals of a regime shift were evident in the manipulated lake during reorganization of the food web more than a year before the food web transition was complete, corroborating theory for leading indicators of ecological regime shifts.

IdeaLab program

If you’re seriously interested in this stuff, and you recently got a PhD, you should apply to IdeaLab 2013, which is a program happening at ICERM from the 15th to the 19th of July, 2013. Here’s the deal:

The Idea-Lab invites 20 early career researchers (postdoctoral candidates and assistant professors) to ICERM for a week during the summer. The program will start with brief participant presentations on their research interests in order to build a common understanding of the breadth and depth of expertise. Throughout the week, organizers or visiting researchers will give comprehensive overviews of their research topics. Organizers will create smaller teams of participants who will discuss, in depth, these research questions, obstacles, and possible solutions. At the end of the week, the teams will prepare presentations on the problems at hand and ideas for solutions. These will be shared with a broad audience including invited program officers from funding agencies.

Two Research Project Topics:

• Tipping Points in Climate Systems (MPE2013 program)

• Towards Efficient Homomorphic Encryption

IdeaLab Funding Includes:

• Travel support

• Six nights accommodations

• Meal allowance

The Application Process:

IdeaLab applicants should be at an early stage of their post-PhD career. Applications for the 2013 IdeaLab are being accepted through MathPrograms.org.

Application materials will be reviewed beginning March 15, 2013.

17 Responses to Tipping Points in Climate Systems

  1. Curtis Faith says:

    Very nice John. Some very interesting implications for economic stability too

  2. Arrow says:

    Seems like a pretty one sided list, where are all the tipping points which would offer us a net benefit?

    For example:
    1. Breaking of the glacial-interglacial cycle. Unlike potential 2-3 degrees of global warming another glaciacion would really decimate humanity. The benefits of breaking this cycle alone would outweigh all the negative consequences of all the tipping points you mentioned combined.

    2. Greening of Sahara (and perhaps other deserts). It’s even mentioned in the link you mentioned.

    3. Restoring Greenland to it’s proper green state.

    4. Opening of the northwest passage.

    and so on.

    • John Baez says:

      I thought you said warming had stopped! And now you’re talking about ‘breaking off the glacial-interglacial cycle’!

      There’s a certain multi-pronged philosophy about climate change which I’ve never understood, which goes something like this:

      1) Global warming is a myth.
      2) But if it’s not, it stopped a while ago.
      3) But if it didn’t, it will stop soon.
      4) But if it doesn’t, it’s not actually bad.
      5) But if it is, at least it’s not human-caused.
      6) But if it is, it’s too late to do anything about it.

      It’s true that people focus more on ‘bad’ tipping points than ‘good’ ones. Luckily the math and physics of tipping points doesn’t really care what we think is ‘bad’ and what we think is ‘good’.

      • Arrow says:

        Well if we are talking about potential tipping points I think both good and bad ones should be represented, whether global warming is a threat or not.

        Also the role of a skeptic is to question all the assumptions of the theory. But to clarify my stance:

        1) There is a small warming trend in the global mean temperature of the last century. It did slow down in the last 15 years despite CO2 continualy increasing.

        2) The complexity of global climate and limitations of scientific method make it is impossible to say how much of this warming is attributable to man-made emissions. Maybe most of it, maybe only a little. Current long term climate models are completely inadequate and unreliable.

        3) Even assuming the warming will continue into the future it will have both beneficial and harmful effects. Though if it does avert another ice age the beneficial effects will outweigh the harmful ones by far.

        4) Even if you wanted to do so, there is absolutely no realistic way to halt CO2 emissions (other then another world war leading to population collapse which is also unlikely atm). As long as cheap fossil fuels are available they will be consumed.

        • You forgot a contained thermonuclear war, that might also slow it down for a while, even without halting CO2 …

          Anyway, more seriously speaking, geoengineering is probably a good option.

        • John Baez says:

          Arrow wrote:

          Well if we are talking about potential tipping points I think both good and bad ones should be represented, whether global warming is a threat or not.

          I agree with you here. As you know, some people tend to focus on big bad things that might happen in the future, while others tend to focus on big good things. It’s very hard to get anyone to behave in a ‘neutral’ way here (or even to define exactly what ‘neutral’ means).

          But there’s also a real sense in which sudden large changes in the Earth’s ecosystem are inherently likely to be bad at first and only slowly reveal their good side. The reason is that people and other organisms are adapted to the current situation.

          For example, if Greenland were to suddenly warm up and melt, it would take at least a few decades and perhaps longer for plants to form rich organic soil there, allowing people to farm there. Eventually it would be a nice place to live. But we’d feel the bad effects right away: there would be a global sea level rise of about 7 meters, which would inundate most of the world’s coastal cities.

          If the change were very slow, we’d have more time to move our cities, and readapt in other ways. And quite generally, slow changes in the Earth’s climate are easier to handle than rapid ones.

          1) There is a small warming trend in the global mean temperature of the last century. It did slow down in the last 15 years despite CO2 continually increasing.

          2) The complexity of global climate and limitations of scientific method make it is impossible to say how much of this warming is attributable to man-made emissions. Maybe most of it, maybe only a little. Current long term climate models are completely inadequate and unreliable.

          It’s nice to see this list all in one place. To me it resembles a multi-layered legal defense more than what I’d call science: “my client had no motive to commit the crime, and even if he did he wasn’t there, and even if he was he didn’t have that gun… and even if he did, the shooting was in self-defense.” But I can see a certain kind of logic to it.

          Let me just fire off some instant reactions. Obviously each one of the topics requires a lot of analysis, which can’t be done adequately in blog comments. But here’s what I think:

          There is an amazingly rapid sky-rocketing of CO2 concentrations in the last century, unprecedented within the last 800,000 years. Very simple robust physics shows that this is making the Earth warm up, and if it continues, the Earth will warm up more, at a very rapid pace by geological standards.

          (Click for details.)

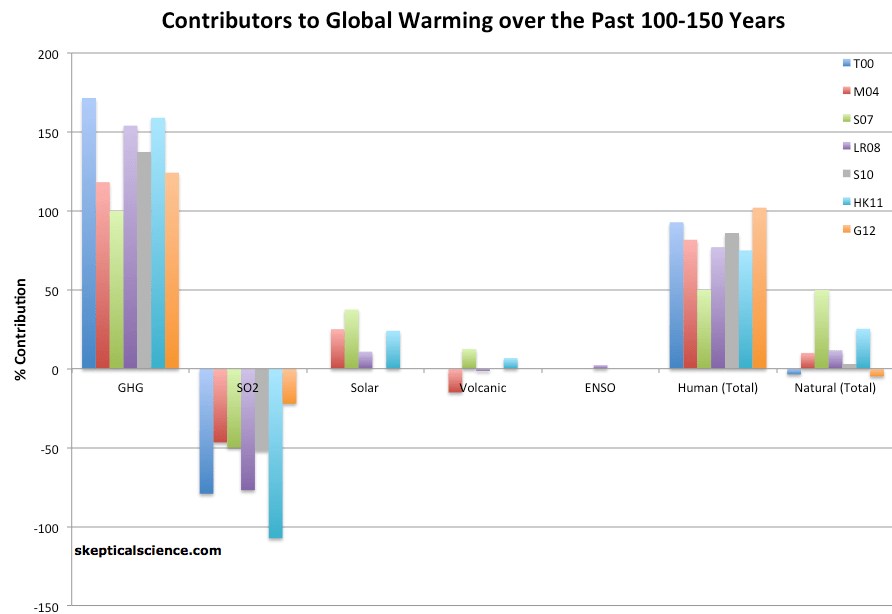

          It’s not impossible to determine how much of the observed global warming is due to this effect—not if we don’t demand several decimal points of accuracy. It’s a challenging problem, but not beyond human powers. We’ve got a lot of smart people working on it, so our understanding is converging to the truth. It’s likely that a doubling of CO2 will cause somewhere between 1.5 and 4.5 °C of warming, and our estimates of this will keep getting better.
